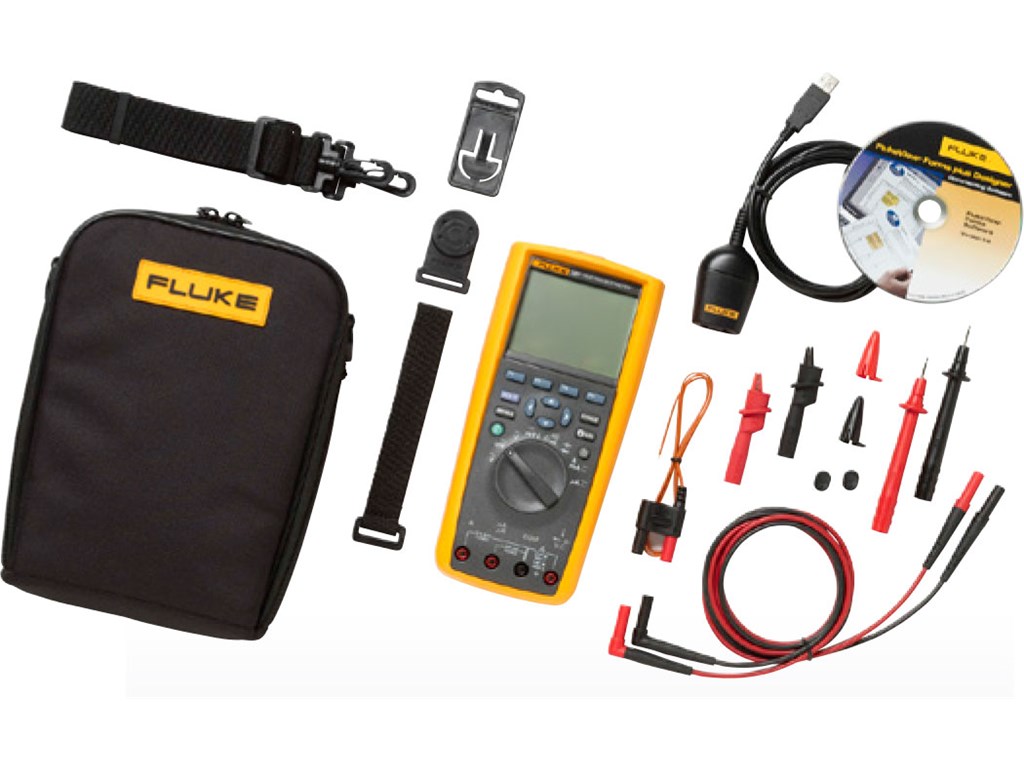

FLUKE-287FVF 디지털 로깅 멀티미터 콤보키트

FLUKE-287FVF 디지털 로깅 멀티미터 콤보키트

FLUKE-287FVF 디지털 로깅 멀티미터 콤보키트

TrendCapture + FlukeView® Forms 소프트웨어가 함께 포함된 Fluke 287 로깅 멀티미터를 구입하면 비용이 절감됩니다.
Fluke 287과 FlukeView Forms가 결합된 콤보 키트로 생산성을 극대화해 보십시오. 오늘날 전자 회로 또는 시스템의 R&D, 유지보수, 제조 및 설계 분야에 종사하는 전문가들을 위해 설계되었습니다. 데이터 로거 및 TrendCapture 기능이 내장된 287을 사용하면 식별하기 어려운 간헐적인 문제를 추적하거나 장비를 모니터링할 수 있습니다. 개별 판독값 또는 일련의 측정값을 저장하고 분석할 수 있는 FlukeView Forms는 로깅된 데이터를 오버레이하여 인과 관계를 찾거나, 전문적인 보고서를 작성할 수 있도록 데이터를 의미 있는 그래프와 표로 변환합니다. 287/FVF 콤보 키트는 회로 설계 성능을 문서화할 수 있는 실용적이고 경제적인 접근 방법을 제공합니다.

  • NEW – Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately).
  • NEW – Let your team see what you see in an instant with ShareLive™ video call (requires Fluke Connect mobile app and ir3000 FC wireless connector).
  • TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred.
  • Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
  • Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
  • Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
  • Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time.
  • Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
  • On board help screens for measurement functions.
  • Saved measurements allow you to name and recall measurements made in the field.
  • Multi-lingual interface.
  • Multiple logging sessions possible without download.
  • 0.025% basic DC accuracy.
  • 100 kHz ac bandwidth.
  • Real time clock for automatic time stamping of saved readings.
  • True RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
  • Measure up to 10 A (20 A for 30 seconds).
  • 100 mF capacitance range.
  • Temperature function.
  • Relative mode to remove test lead resistance from low ohms or capacitance measurements.
  • Peak capture to record transients as fast as 250 μs.
  • Premium test leads and alligator clips included.
  • Amp jack plugs included.
  • FlukeView forms enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
  • Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job.
  • Limited lifetime warranty.
