• 전압, 전류, 유효 전력, 무효 전력, 피상 전력, 역률 및 고조파 측정
• 0.1 % 측정 정확도와 500kHz 대역폭으로 정확하고 정밀한 결과 얻기

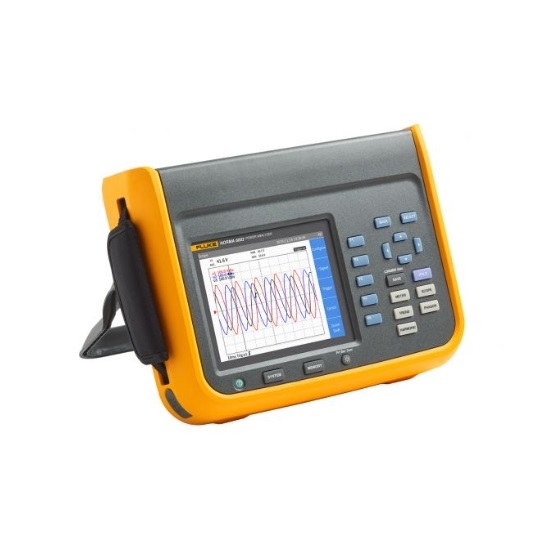

• 정밀 전력 측정 수행 – 최대 10 시간의 배터리 수명으로 무게가 3.5kg에 불과한 휴대 성이 뛰어난 배터리 전원 분석기
• 전압, 전류, 유효 전력, 무효 전력, 피상 전력, 역률 및 고조파 측정
• 0.1 % 측정 정확도와 500kHz 대역폭으로 정확하고 정밀한 결과 얻기
• 정밀 전력 측정 수행 – 최대 10 시간의 배터리 수명으로 무게가 3.5kg에 불과한 휴대 성이 뛰어난 배터리 전원 분석기
Inputs | Norma 6003 | 3 Voltage + 3 Current |
Norma 6003+ | 3 Voltage + 3 Current + 1 Motor | |
Norma 6004 | 4 Voltage + 4 Current | |
Norma 6004+ | 4 Voltage + 4 Current + 1 Motor | |
Sample rate | 200ks/s | |
Measurement update rate | 100ms, 200ms, 500ms, 1s | |
Dimensions (H * W * L) | 298mm x 215m x 96mm | |
Weight | 3.5 kg (7.7 lbs) | |
Display | 5.7 inch, TFT LCD, 640×480 | |
Operating temperature | -10 °C to +50 °C | |
Storage temperature | -30 °C to +60 °C | |
Operating humidity | Non-condensing (< 10 °C ) ≤ 90 % RH (at 10 °C to 30 °C) ≤ 75 % RH (at 30 °C to 40 °C) ≤ 45 % RH (at 40 °C to 50 °C) |
|
Operating altitude | 2000m | |
Storage altitude | 12000m | |
Ingress protection | IP 50 (Terminals mated) according to IEC 60529: | |
Battery | BP 291, 10.8V/5000mAh, 54Wh IEC 62133, UN38.3 Operating time: 10 Hours (on battery) |
|
Safety | IEC 61010-1: Pollution Degree 2 IEC 61010-2-030: CAT IV 600V, CAT III 1000 V |
|
EMC | IEC 61326-1: Industrial IEC 61326-2-2 |
|
Warranty | 1 Year | |
Communication Interface | USB/RS485 | |
Dual Analyzer Synchronization Mode | Able to extend to 6, 7 or 8 channels (using multiple instruments) | |
PC Software | Fluke Power Analyzer software | |
Storage Capacity | 32GB | |
Data trend storage rate | As per display rate | |
Main Function | Meter, Scope, Harmonic, Phasor, Trend | |
Measuring Parameters | RMS, DC Component, AC Component, Rectified Mean, Peak Value, Peak-Peak, Crest Factor, Form Factor, Fundamental Component, Fundamental Content, Harmonic Distortion, Harmonic Content, Harmonic Factor for voltages and currents, Active Power, Reactive Power, Apparent Power, Power Factor, Phase Shift, Efficiency, Impedance, Electric Energy, Charge/Discharge capacity (Ah), Frequency, Motor Speed, Torque, Mechanical Power, Mechanical Energy, Summation function |
Electrical Specifications | |
Voltage | |
Range | 10 V, 100 V, 1000 V |
Crest Factor | CF ≤ 2 |
Maximum Voltage | 10 % overload |
Input Impedance | 2M Ω/10pF (Typical) |
Temperature Coefficient | 0.05 * (Spec)/k |
Bandwidth | 1000V range: 500kHz; 100V range: 200 kHz; 10V range:100 kHz |
CMRR | 120 dB @ 50/60 Hz |
Accuracy (% reading + % range) | |||
Range | 1000 V | 100 V | 10 V |
DC | 0.1 + 0.1 | 0.1 + 0.1 | 0.1 + 0.2 |
AC (10Hz to 1kHz) | 0.1 + 0.1 | 0.1 + 0.1 | 0.1 + 0.2 |
AC (10kHz) | 5 + 0.5 | 5 + 0.5 | 5 + 0.5 |
Current | |||
Crest Factor | CF ≤ 2 | ||
Temperature Coefficient | 0.05 x (Spec)/k | ||
Overload capacity | 10 % overload | ||
CMRR | 120 dB @ 50/60 Hz | ||
Shunt (current input) | |||
Measuring Range | 0.1 A, 1 A, 10 A | ||
Input Impedance | 0.025 Ω (Typical) | ||
Bandwidth | 10 A range: 500 kHz; 1 A range: 200 kHz; 0.1 A range: 100 kHz | ||
BNC (voltage input) | |||
Range | 0.1 V, 1 V, 10 V | ||
Input Impedance | 100k Ω/100pF (Typical) | ||
Bandwidth | 10 V range: 500 kHz; 1 V range: 200 kHz; 0.1 V range: 100 kHz |
Accuracy (% reading + % range) | ||||||
Range | 10 A | 1 A | 0.1 A | 10 V | 1 V | 0.1 V |
DC | 0.1 + 0.2 | 0.1 + 0.5 | 0.1+2 | 0.1+0.1 | 0.1+0.2 | 0.1+1 |
AC (10Hz to 1kHz) | 0.1+0.1 | 0.1+0.2 | 0.1+1 | 0.1+0.1 | 0.1+0.1 | 0.1+0.5 |
AC (10kHz) | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 | 5+1 |
Motor Module (Torque and Speed) | ||||||
Voltage Range | ± 10 V dc, 10 % overload | |||||
Voltage Channels | 2 | |||||
Input Impedance | 1.1M Ω (Typical) | |||||
Accuracy at dc | 0.1 % range + 0.1 % reading | |||||
Pulse Channels | 3 | |||||
Pulse Logic High Threshold | 2 V (Typical) | |||||
Pulse Logic Low Threshold | 0.8 V (Typical) | |||||
Maximum Pulse Frequency | 100 kHz | |||||
Motor Module (Torque and Speed) | ||||||
Frequency Accuracy | 0.05 % range + 0.05 % reading | |||||
Harmonics | 100 (50Hz/60Hz) | |||||
Calculation method | FFT/Interpolation |
