P5514-2700G, P5515-2700G Hydraulic Pressure Calibrators

P5514-2700G, P5515-2700G Hydraulic Pressure Calibrators

The P5514-2700G Hydraulic Pressure Calibrator has a range to 10,000 psi (700 bar)
This hydraulic pressure calibrator with the 2700G Reference Pressure Gauge is used for checking pressure measuring instruments using the 2700G as the master test gauge. The P5514 minimizes the space required at the workbench where it is securely mounted. It provides robust generation of pressures up to 10,000 psi (70 MPa) in a variety of fluids. Best of all, the built-in screw press make operation very simple.
P5514-2700G features:
  • Simple pressure generation to 70 MPa (10,000 psi)
  • Compatible with a wide range of fluids including water, oil, and solvents

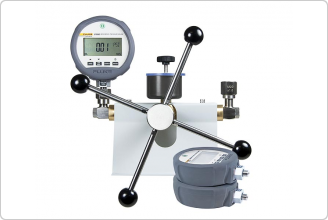

The P5515-2700G Hydraulic Pressure Calibrator has a range to 10,000 psi (700 bar)
This hydraulic calibrator is portable and sits conveniently on a bench or can be taken to other locations in its sturdy carrying case. It’s ideal for checking pressure measuring instruments such as indicators and transducers. The P5515-2700G is capable of pressure generation up to 140 MPa (10,000 psi). Designed for operation with a wide range of fluids, the P5515 includes everything you need to generate pressure such as the clear acrylic reservoir, priming pump and fine threaded screw press. The high-quality screw-press simplifies setting and fine-tuning the pressure.
P5515-2700G features:
  • Measure and generate pressures to 70 MPa (10,000 psi ).
  • Compatible with a wide range of fluids including water, oil, and solvents
  • Built-in priming pump for system priming and large volume applications
  • High quality screw press for pressure generation and fine pressure control
  • Acrylic reservoir for visibility of fluid level and quality
  • Lid becomes carrying case for transportable applications

Fluke Calibration hydraulic calibrators are an easy-to-use alternative to traditional deadweight testers. These pressure calibrators are conveniently bundled with up to six 2700G Reference Pressure Gauges for a complete, benchtop pressure calibration solution to provide the accuracy, reliability, and capability you need to calibrate dial gauges, digital test gauges and pressure transmitters.
  • Best-in-class accuracy of 0.02% full scale for each 2700G Reference Gauge.
  • Expand lower range capability with additional 2700G Reference Gauges
  • Adaptors to provide hand tight connection to common NPT, BSP, and metric fitting types
  • Included reference gauges are battery operated and capable of using line power too
  • Portable with a sturdy carrying case
